플라즈마 의료기기 (전기수술장치)
PLATON
플라즈마 의료기기 (전기수술장치)
PLATON
What is PLATON?

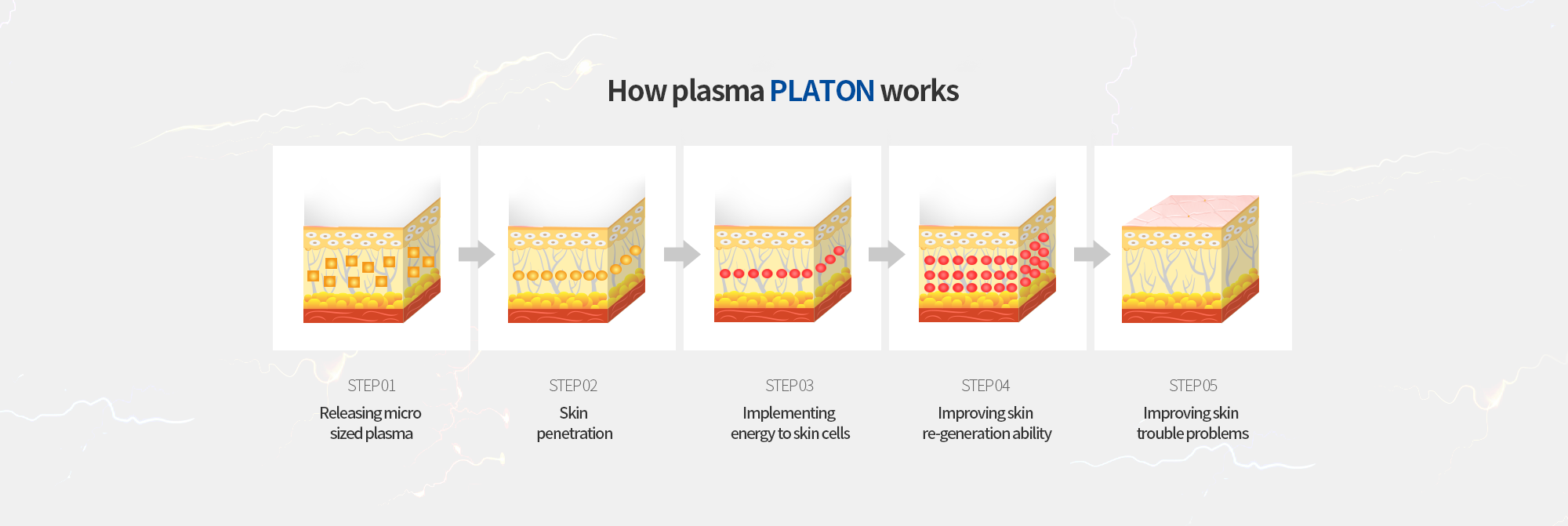

Effects on skin regeneration, elasticity, whitening, disinfection and sterilization
proven through performance of professional therapists
장비규격
타입 |
플라즈마(Plasma) |
|---|---|
정격 전압 |
AC100-240V (DC5V/2A) |
주파수 |
50/60 Hz |
본체 사이즈 |
20*3.5*3.5 cm |
총 무게 |
3.4kg |
장비 케이스 무게 |
2.1kg |
Large 팁 |
직경 4.5cm |
Middle 팁 |
직경 3cm |
Small 팁 |
직경 0.5cm |
Needle 팁 |
직경 0.05cm |
Product Specification
ITEM |
SEPCIFICATION or DESCRIPTION |
|
|---|---|---|
ADAPTER |
INPUT |
100-240V~, 50/60Hz |
POWER COMSUMPTION |
Within 500 VA |
|
MAIN BODY INPUT RATING |
5V , 2A |
|
ENERGY TYPE |
PLASMA |
|
OUTPUT POWER |
1 LEVEL |
2.1 Watt |
2 LEVEL |
2.6 Watt |
|
3 LEVEL |
3.7 Watt |
|
4 LEVEL |
5.4 Watt |
|
5 LEVEL |
6.1 Watt |
|
6 LEVEL |
6.4 Watt |
|
7 LEVEL |
7.1 Watt |
|
8 LEVEL |
9.3 Watt |
|
DEMENSION |
MAIN BODY |
200 mm × 35 Φ |
ADAPTER |
5V , 2A |
|
TIP 1 |
Diameter 45 mm |
|
TIP 2 |
Diameter 30 mm |
|
TIP 3 |
Diameter 5 mm |
|
TIP 4 |
Diameter 0.5 mm, Needle type_Straight Type |
|
TIP 5 |
Diameter 0.5 mm, Needle type_Bending Type |
|
N.E PLATE |
50 ⅹ50 mm |
|
N.E CABLE |
Approximately 1000 mm |
|
CASE |
430 ⅹ 330 ⅹ 100 mm, 2.1 kg |
|
Cradle |
220 ⅹ 250 ⅹ 130 mm, 1.5 kg |
|
Trolley |
500 Φ ⅹ 670 mm, 14.1 kg |
|
These products are [medical device]
therefore precautions and user instructions must be follwed.
