초음파 골밀도 진단기
OsteoPro UBD2002A
초음파 골밀도 진단기
OsteoPro UBD2002A

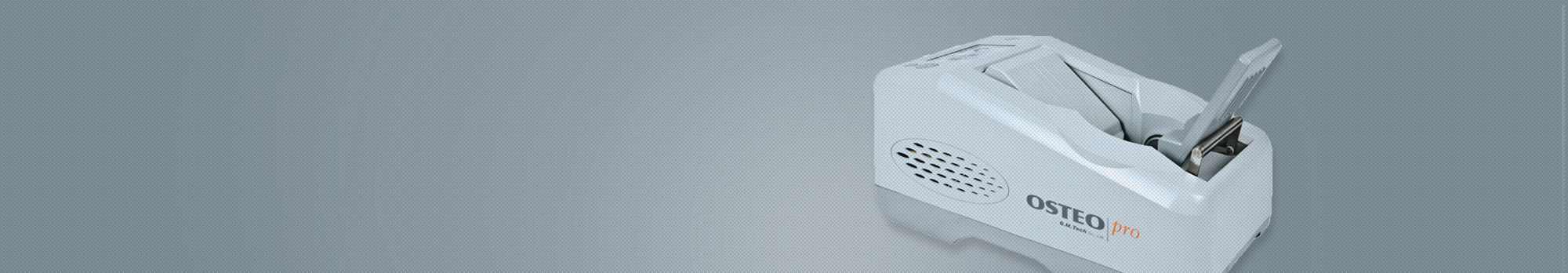

OsteoPro UBD2002A
Bone mineral Densitometer using Ultrasound technology
Fast scan time, easy operation and durability
Compact design enables portability any where using a laptop.
해당 제품은 수출전용 제품 입니다.
Product Specification
General
ITEM |
Contents |
|
|---|---|---|
Name |
Ultrasound Bone Densitometer |
|
Model Name |
OSTEO Pro UBD2002A |
|
Dimension |
300mm X 600mm X 300mm (13kg) |
|
Measure |
Ultrasound Bone Densitometer |
|
Transmission Type |
0.5㎒，Flat Type |
|
Osteoporosis Parameter (OI) |
Age |
20-100 |
Precision |
OI: 2%CV |
|
Ultrasound Acoustic Power Output (초음파 음향 출력)
Index Label |
MI |
|
|---|---|---|
Maximum index value |
0.05 |
|
Associated acoustic parameters |
Pr,α |
0.04 Mpa |
Z at max Ipi,α |
5.5cm |
|
fawf |
0.5 MHz |
|
Aaprt |
Apart＜1.25㎠ |
|
Other information |
td |
2.2 usec |
prrpi,α |
1.5 Hz |
|
Pr at Max Ipi |
35X10-3Mpa |
|
Ipi,α at Max MI |
29X10-3mW/㎠ |
|
※THERMAL INDEX and the MECHANICAL INDEX are below 1,0
These products are [medical product]
therefore precautions and user instructionsmust be followed.
