OSTEOPro UBD2002A EASY

OSTEOPro UBD2002A EASY

초음파 골밀도 측정기 · 일체형

제품

초음파 골밀도 측정기 OSTEOPro UBD2002A EASY

Equipped with a PC system, 7" touch-panel LCD and thermal printer.
All-in-one ultrasound bone densitometer.

해당 제품은 수출전용 제품 입니다.

OSTEOPro UBD2002A EASY FEATURE

01

Easy & user friendly interface

02

Easy to input patient data

03

Multi lingual support

04

Enables external monitor and printer use

05

Data capability up to 100,000 patients

이미지

OSTEOPro UBD2002A EASY

OSTEOPro UBD2002A SMART + PC system + 7" touch-panel LCD + thermal printer

The features of OSTEOpro

High Quality, Precise Data and User friendly System

  • More Accurate

    • Using WHO's diagnostic standard parameter, OSTEOPro provides the reliable diagnostic results.
    • OSTEOPro uses oil medium that is similar to water, but is not affected by temperature changes, thus reducing diagnostic errors and improving reproducibility remarkably.
    • T-score Precision: less than 0.1 percent.

  • More Economical

    • One of the strong points of OSTEOPro is the balloon with durable material.
    • The balloon is permanent, so there is no risk of balloon blowout.
    • Longer balloon replacement cycle, so it saves the cost of consumables.

  • More Convenient

    • It's easy to move around and can be used in limited space.

Osteoporosis Diagnosis for Adults

Advanced technology to achieve the highest accuracy

OSTEOpro measuring concept diagram — Heel, Calcaneus, Oil Balloon, Transducer

  • Using oil medium

    Data variation due to temperature inconsistency has been minimized.

  • Utilizes Ultrasound Transducer

    Diagnostic errors caused by the transducer shifting has been reduced.

  • Adopts Calcaneus Thickness Data

    Accuracy of diagnostic result has been improved by adopting calcaneus thickness data as one of parameters.

A convenient user friendly interface

  • Provides simple and easy entry of patients' information, and supports languages.
  • An external printer and monitor can be used together.
  • Up to 100,000 patients' data can be stored automatically.

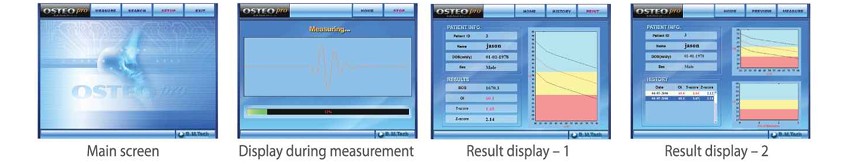

Main screen · Display during measurement · Result display 1 · Result display 2

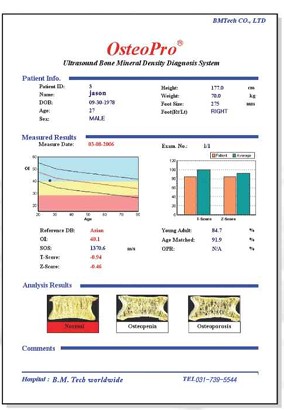

Result Sheet

OsteoPro 결과지 예시

  • Uses Standard Bone Density Data

    OSTEOPro produces more accurate prognosis by using bone density data that have been achieved through a variety of clinical diagnoses.

  • Reflects WHO's Osteoporosis Diagnosis Standard

    It adopts the osteoporosis diagnosis standard established by WHO (World Health Organization).
    T-score (Young-Adult) · Z-score (Age Matched)

Product Specification

General

ITEM

Contents

Name

Ultrasound Bone Densitometer

Model Name

OSTEO Pro UBD2002A

Dimension (mm)

300 X 600 X 300 (20kg)

Measure

Ultrasound Bone Densitometer

Transmission Type

0.5㎒，Flat Type

Osteoporosis Parameter (OI)

Age

20-100

Precision

OI: 2%CV

These products are [medical product]
therefore precautions and user instructions must be followed.
